Quick Details

  • Brand Name: SANWAY
  • Model Number: FP14000
  • Type: Professional Amplifier
  • Channels: 2 (2.0)
  • Place of Origin: Guangdong, China (Mainland)
  • High Output: 7000W per channel
  • Low Impedance: 2 ohms stable
  • Heatsink: pure copper
  • Wide operating voltage range: 220v version amps can run from 135v to 265v voltage range
  • 110v: 110v version can run from 65v to 135v voltage range
  • Packing: 2 layers carton
  • Packing dimenson: 58x18x56cm
  • Net weight: 12.5kg
  • Gross weight: 18kg
  • FP14000: 2 Channel 14000W 2ohms Stable Audio Amplifier

Packaging & Delivery

Packaging Details FP14000 2 Channel 14000W 2ohms Stable Audio Amplifier
CARTON: 57.5X55X14CM
Delivery Time without delay upon receipt of deposit

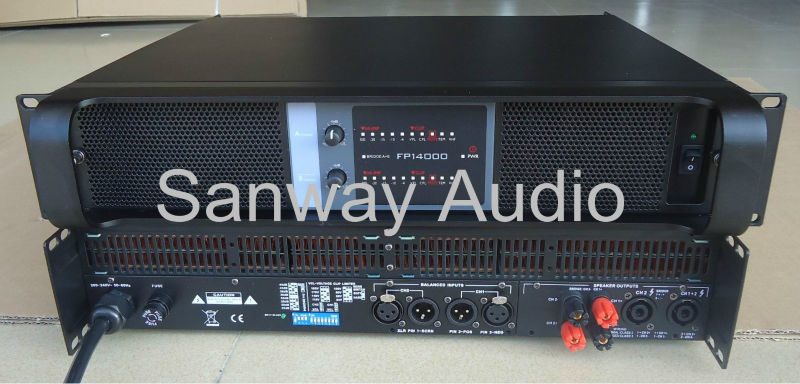

FP14000  2 Channel 14000W 2ohms Stable Audio Amplifier
1. 2x7000W@2ohms stable Audio Amplifier
2. High Power 14000W total Audio Amplifier
3. Light Weight Switching Power Amplifier
Product Description


FP14000 Amplifier Board
FP14000 Input Board
FP14000 Power Supply Board
  FP14000  2 Channel 14000W 2ohms Stable Audio Amplifier
Output Power20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)1450WX21600WX22350WX22350WX2625WX41350WX4
4ΩStereo Power(RMS)2800WX23000WX24400WX24400WX21250WX42100WX4
2ΩStereo Power(RMS)3500WX24500WX26500WX27000WX21500WX42500WX4
8ΩBridged Power(RMS)5600W6000W8800W8800W2500WX24200WX2
4ΩBridged Power(RMS)7000W9000W13000W14000W3000WX25000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
TourClass ProtectionACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal130-265 V / 65-135 V
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension560×180×500mm
Net weight(kg)12
Gross weight(kg)15
