Quick Details

  • Brand Name: SANWAY
  • Model Number: FP10000Q
  • Type: Professional Amplifier
  • Channels: 4
  • Place of Origin: Guangdong, China (Mainland)
  • wideband voltage: 220v version can run from 135v to 265v voltage range
  • heat sink: pure copper
  • low impedance: 2.67ohms
  • packing: 2 layers carton
  • FP10000Q: Sanway Professional Audio Amplifier
  • Warranty: 2 years
  • Class: TD
  • Input impedance: 20 kOhm
  • Net weight(kg): 12
  • Gross Weight: 18

Packaging & Delivery

Packaging Details: FP10000Q Sanway Professional Audio Amplifier
CARTON: 57.5X55X14CM
Delivery Detail: without delay upon receipt of funds

FP10000Q  Sanway Professional Audio Amplifier

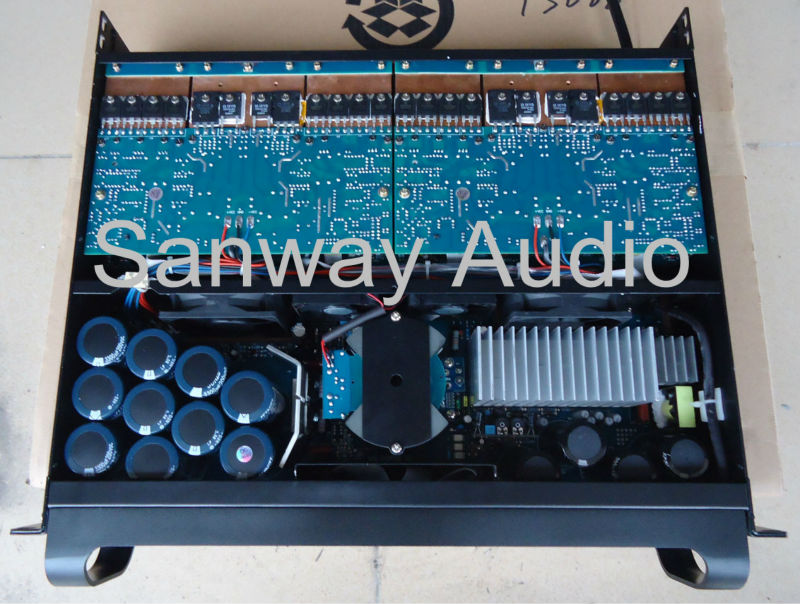

FP10000Q Power Amplifier Inside

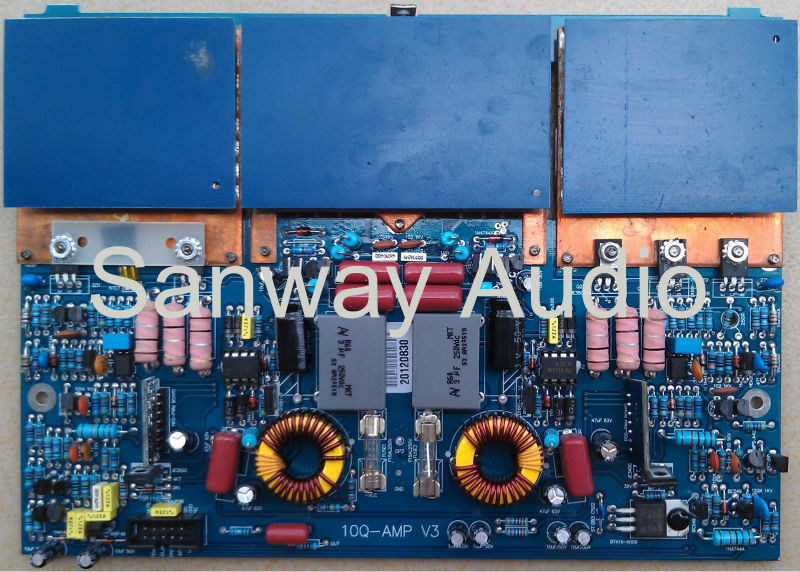

FP10000Q Amplifier Board

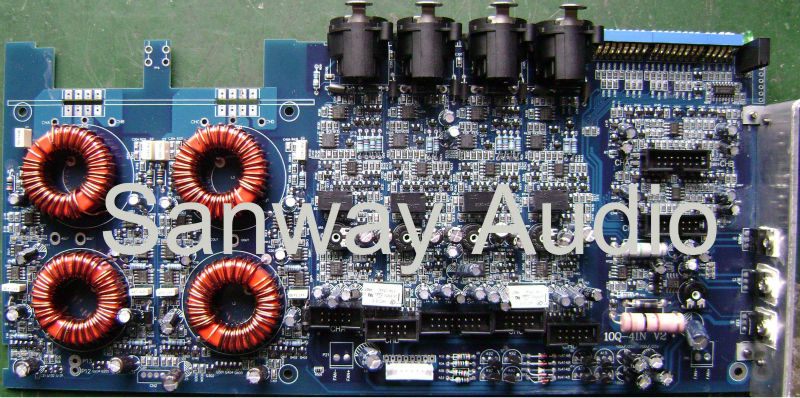

FP10000Q Input Board


FP10000Q Power Supply Board

Product Description





Specification:
  FP10000Q Sanway Professional Audio Amplifier
ITEM
FP6000Q
FP10000Q
Output Power
20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)
625WX4
1350WX4
4ΩStereo Power(RMS)
1250WX4
2100WX4
2ΩStereo Power(RMS)
1500WX4
2500WX4
8ΩBridged Power(RMS)
2500WX2
4200WX2
4ΩBridged Power(RMS)
3000WX2
5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)
20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W
<0.1%
Signal-to-Noise Ratio
>112 dBA
Channel separation (Crosstalk) at 1 kHz
>70 dB
Input Connectors (per channel)
3-pin XLR, electronically balanced
Output Connectors (per channel)
Binding Posts 2-pole
Class
TD
TourClass ProtectionACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush
Operating voltage
130-265 V / 65-135 V selectable
Voltage Gain(dB)
23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance
20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)
483×88×396mm
Packing dimension
560×180×500mm
Net weight(kg)
12
Gross weight(kg)
18
