Quick Details

  • Brand Name: SANWAY
  • Model Number: FP14000
  • Type: Professional Amplifier
  • Channels: 2 (2.0)
  • Place of Origin: Guangdong, China (Mainland)
  • FP14000: 7000W 2 ohm Pa System Power Mixer Professional Amplifier
  • Heatsink: pure copper
  • Wideband voltage: 220v version can run from 135v to 265v voltage range
  • 110V: 110V version can operate from 65V to 135V voltage range
  • Power Plug: European or American
  • Warranty: 2 years
  • Packing: 2 layers carton
  • Packing dimension: 58x18x56cm
  • Net weight: 12.5kg
  • Gross weight: 18kg

Packaging & Delivery

Packaging Details: FP14000 7000W 2 ohm Pa System Power Mixer Professional Amplifier, CARTON: 57.5X55X14CM
Delivery Detail: without delay upon receipt of deposit

FP14000 7000W 2 ohm Pa System Power Mixer Professional Amplifier


FP14000 Inside

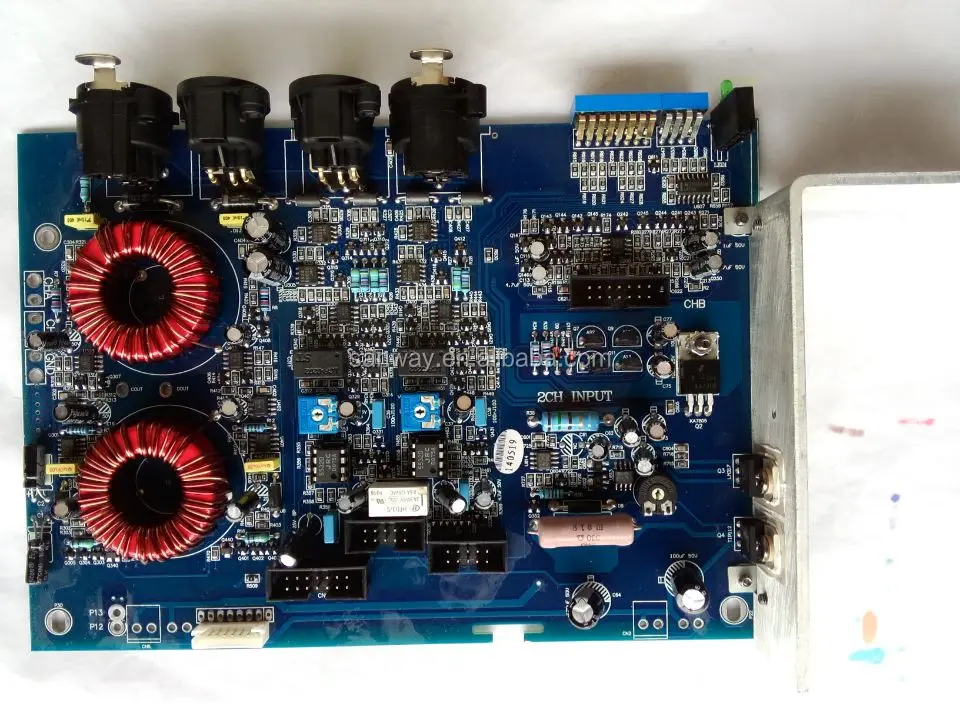

FP14000 Amplifier Board


FP14000 Input Board


Product Description



Specification: FP14000 7000W 2 ohm Pa System Power Mixer Professional Amplifier

ITEM
FP7000
FP9000
FP13000
FP14000
Output Power
20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)
1450WX2
1600WX2
2350WX2
2350WX2
4ΩStereo Power(RMS)
2800WX2
3000WX2
4400WX2
4400WX2
2ΩStereo Power(RMS)
3500WX2
4500WX2
6500WX2
7000WX2
8ΩBridged Power(RMS)
5600W
6000W
8800W
8800W
4ΩBridged Power(RMS)
7000W
9000W
13000W
14000W
Frequency Response(+o/-0.3dB,1W/8Ω)
20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W
<0.1%
Signal-to-Noise Ratio
>112 dBA
Channel separation (Crosstalk) at 1 kHz
>70 dB
Input Connectors (per channel)
3-pin XLR, electronically balanced
Output Connectors (per channel)
Binding Posts 2-pole
Class
TD
TourClass ProtectionACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush
Operating voltage
130-265 V / 65-135 V selectable
Voltage Gain(dB)
23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance
20 kOhm
Level adjustment (per ch.)
Front-panel potentiometer, 31 position detented
from -inf to 0 dB
Dimensions (W×H×D)
483×88×396mm
Packing dimension
560×180×500mm
Net weight(kg)
12.5
Gross weight(kg)
18
